1.8m C Manual Flyaway Antenna
A.Single offset reflector antenna. B.AZ, EL pedestal, feed, support legs etc. C.Superior RF performance through optimization design of reflector and RF branch. D.The reflector adopts carbon fiber material, has light weight, high strength, convenient and simple in disassembly and assembly.
System features
A. High integration ,light weight ,case type.
B. No tool is needed in assembly & disassembly of the antenna and interchangeability is good.

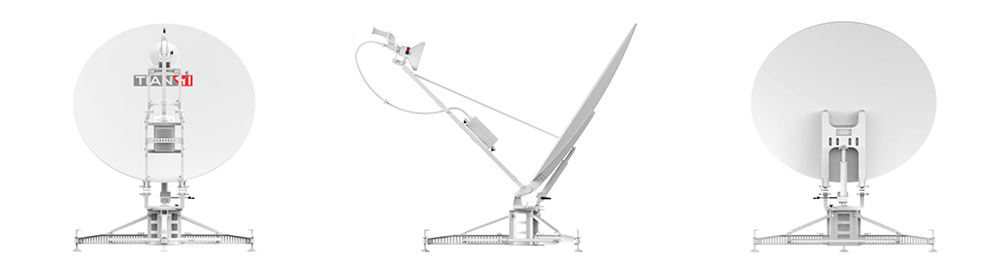

Product display
Technical data
Name | 1.8mC manual flyaway antenna | Antenna feed | Offset | |||
Type | MF-1800-A | Equivalent aperture | 1.8m | POL mode | Linear | |
Frequency | Rx：3.40～4.20 GHz | Gain | Rx：≥34.7+20lg(f/3.80) dBi | |||
Tx：5.85～6.725 GHz | Tx：≥39.1+20lg(f/6.25) dBi | |||||
Port isolation | Rx-Tx ：≥ 85 dB（LNB input ） | VSWR | Rx：≤ 1.5 | |||
Tx-Rx：≥ 40 dB（BUC output ） | Tx：≤ 1.5 | |||||
Cross polarization isolation | ≥ 30 dB（axle ） | 1st side lobe | ≤ -14 dB | |||
Motion range | AZ | 360° | Power capacity | ≤1000 W | ||
EL | 0° ～ 85° | RF interface | Rx：WR229 | |||
POL | ± 90° | Tx：WR137 | ||||
Operating temperature | -40°C～+60 °C | Operating wind velocity | ≤11 m/s（Ballasting ） | |||
Storage temperature | -50°C～+70 °C | Survival wind velocity | ≤18 m/s（Ballasting ） | |||
Humidity requirement | No more than 95%（20 °C） | Protection grade | IP 65 | |||
System weight | ≤81.2Kg（excluding BUC.LNB.packaging and accessories etc） | |||||
