1.8M Ka Band Offset Flyaway
A.Full Ka band operation up to 3.5 GHz bandwidth. B.High accuracy carbon fiber panel up to 0.3mm RMS. C.Aviable intergrate the mainly Ka tranceiver system. D.Single offset reflector antenna with 6 segments.
Highlight
A. Full Ka band operation up to 3.5GHz bandwidth.
B. High accuracy carbon fiber panel up to 0.3mm RMS.
C. Aviable intergrate the mainly Ka tranceiver system.
D. Single offset reflector antenna with 6 segments.

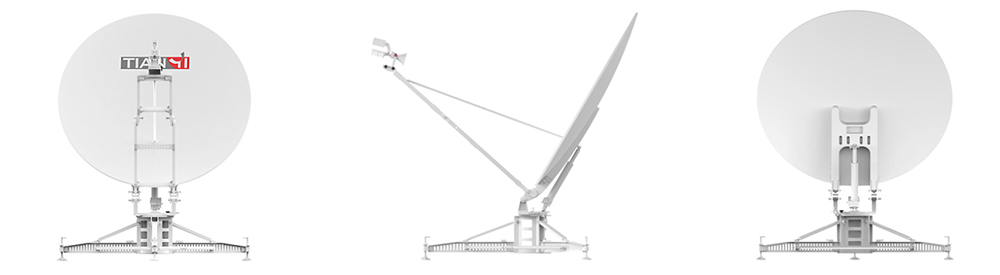

Product display
Technical date
Model No | MF1800N1-A | ||
Ka band | |||
Operational Frequency | Tx | 27.5～31.0 GHz | |
Rx | 17.7～21.2 GHz | ||
Gain (Mid Band) | Tx | 52.0+20lg(f/30) dBi | |
Rx | 48.9+20lg(f/20) dBi | ||
Polarization | Circular | ||
Axis Ratio (On Axis, circular) | 1.5dB | ||
VSWR | 1.3 | ||
Tx/Rx Isolation | 85 dB | ||
Power capability | 100W | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
Side Lobe | -14dB（first side lobe） | ||
Feed Type | Single offset | ||
Reflector aperture | 1.8M | ||
