0.9m Auto Deploy Flyaway Antenna

A.Carbon fiber reflector with light weight, high strength and accuracy and R.M.S<0.3mm. B.Support manual, manual and one button auto deploy acquisition satellite. C.Easy acquisition without training and tools, satellite lock in 4 minutes. D.Support C, X, Ku and Ka band.


System composition

Gregory dual offset antenna (with carbon fiber reflector),ku band corrugated horn, OMT and filter, AZ, EL, POL motor,Beacon receiver, angle sensor .GPS.DVB. WiFi module. ATPC control board.


System feature

A.Carbon fiber reflector with light weight, high strength and accuracy and R.M.S<0.3mm.

B.Support manual, manual and one button auto deploy acquisition satellite.

C.Easy acquisition without training and tools, satellite lock in 4 minutes.

D.Support C, X, Ku and Ka band.

E.Support DVB-S1, DVB-S2, beacon and modem in satellite locking.

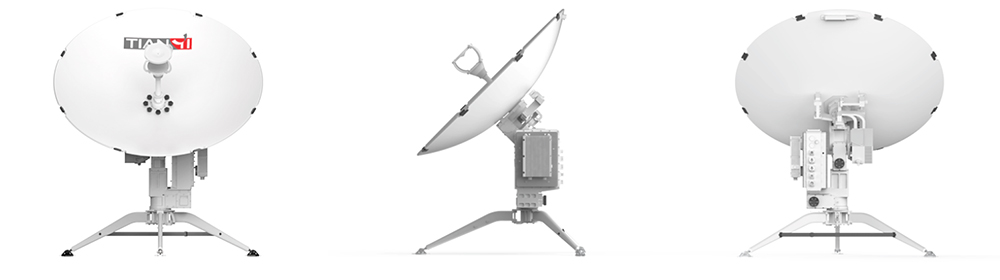

Product display



Technical data

   Type

FA900P-A1

Reflector   aperture

0.9m

Tx frequency

13.75~14.50   GHz

7.25~7.75   GHz

Rx   frequency

10.95~12.75   GHz

7.9~8.4   GHz

Tx   gain

38.6+20lg(f/14.125)   dBi

34.5+20lg(f/7.5)   dBi

Rx   gain

37.6+20lg(f/11.85)   dBi

                   35.5+20lg(f/8.2)   dBi

Polarization   feature

Linear

Circular

Feed   interface

WR75

WR112

Cross   polarization (Axis)

35   dB

Rx/Tx   isolation

85   dB

Side   lobe

                                                      -14   dB(first side lobe)

Reflector   type

Daual reflector, ring focus

Backpack

Size:650*550*350mm weight: 23Kg(without BUC)

Size:650*550*350mm weight: 17Kg

Slewing area

Azimuth

± 180°

Elevation

10°~90°

Polarization

± 95°

Rotate     speed

Azimuth

0.01°   /S ~3°   /S

Elevation

0.01°   /S ~3°   /S

Pol

1°   /S

               Power supply

DC24 10A, AC110-230V 50/60Hz 5A (optional)

              Work wind load

18m/s(balance   weight)

 Temperature

-40℃~+55℃

 Protection grade

IP65

 Humidity

                                                                    0-98%
