Fly-Away
0.9m Carbon Fiber Flyaway Antenna System
A.Single offset reflector antenna with 6 segments. B.Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes. C.Easy acquisition without any training and tools. D.Fast and high-quality transmission at anytime and anywhere.
System features
A. Superior RF performance through optimization design of reflector and RF branch.
B. simple in disassembly and assembly, one person can finish the installation within 3 minutes.
C. Fast and high quality band width transmission with transmission band width not less than 4M anywhere and anytime.
D. High integration ,light weight ,case type.
E. No tool is needed in assembly & disassembly of the antenna and interchangeability is good.

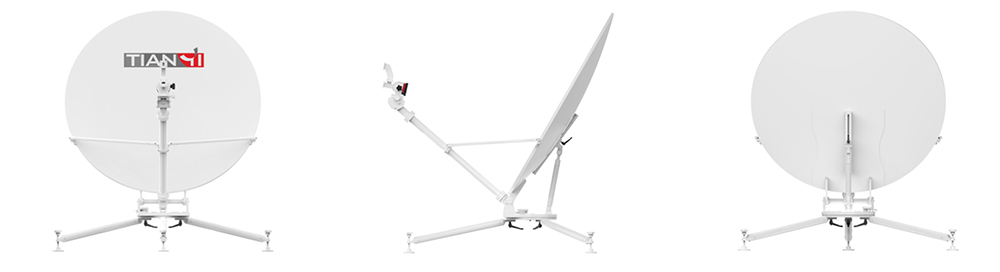

Product display
Technical date
Model No | MF900-A | |
Ku band | ||
Operational Frequency | Tx | 13.75～14.50 GHz |
Rx | 10.7～12.75 GHz | |
Gain (Mid Band) | Tx | 39.8+20lg(f/14.0) dBi |
Rx | 38.5+20lg(f/12.0) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
Axis Ratio (Circular) | / | |
VSWR | 1.3 | |
Tx/Rx Isolation | 85 dB | |
Power capability | 400W | |
Feed Interface | WR75 | |
Side Lobe | -14dB（first side lobe） | |
Feed Type | Single offset | |
Reflector aperture | 0.90M | |
Slew Range | Azimuth | ± 60° |
Elevation | 15°~90° | |
Polarization | ±90° | |
Weight | ≤ 13Kg（without BUC, LNB, packaging and accessories etc.） | |
