Fly-Away
0.90m Manual Flyaway Antenna
A.Single offset reflector antenna with 6 segments. B.Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes. C.Easy acquisition without any training and tools. D.Fast and high-quality transmission at anytime and anywhere.
System composition
A. Single offset reflector antenna, 6 segments.
B. AZ, EL pedestal, feed.
Highlight
A. Single offset reflector antenna with 6 segments.
B. Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes.
C. Easy acquisition without any training and tools.
D. Fast and high-quality transmission at anytime and anywhere.
E. Carbon fiber tripod support legs.
F. Support Ku and Ka band as an option;
G. Using at such industries as Broadcast & media, emergency & public safety, oil and gas etc.

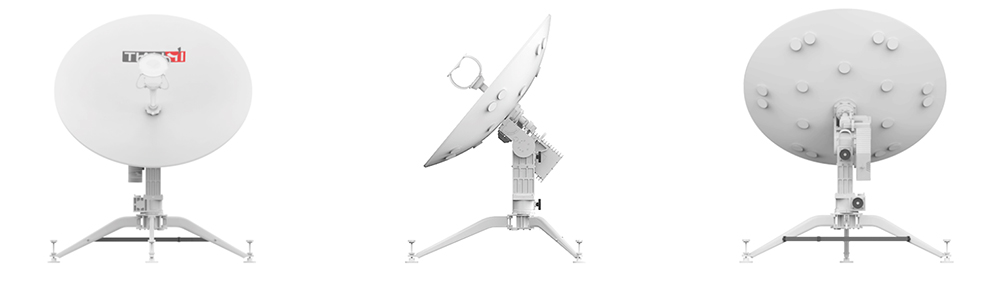

Product display
Technical date
Model No | MF900Z-A | |
Ku band | ||
Operational Frequency | Tx | 13.75～14.50 GHz |
Rx | 10.7～12.75 GHz | |
Gain (Mid Band) | Tx | 39.8+20lg(f/14.0) dBi |
Rx | 38.5+20lg(f/12.0) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 30 dB | |
VSWR | 1.5 | |
Tx/Rx Isolation | 85 dB | |
Power capability | 400W | |
Feed Interface | WR75 | |
Side Lobe | -14dB (first side lobe) | |
Feed Type | Ring focus | |
Reflector aperture | 0.90M | |
Slew Range | Azimuth | 360° |
Elevation | 0°~90° | |
Polarization | ±90° | |
Weight | ≤ 11.5KG（without BUC, LNB, packaging and accessories etc.） | |
