1.0m Ka Band Auto Flyaway Antenna
Full Ka band operation up to 3.5GHz bandwidth. High accuracy carbon fiber panel up to 0.3mm RMS. Available intergrate the mainly Ka tranceiver system. Support manual, auto and one button capture satellite within 3 minutes.
System description
1.0m Ka Band Auto Flyaway Antenna is more famous product by tianyisatcom. It is specially designed for highly portable antenna by adopting Carbon fiber material with light weight and can be assembled in less than 5 minutes by one person .It can provide users exceptional performance in high gain and low side lobe.
Highlight
Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application.
Ka band Ring focus feed system assures high gain, low side lobe and perfect RF proformance.
Intergrate GPS system, position detection system, POL adjustment system ,servo drive system, auto protection system , high performance satellite beacon receiving system , and intelligent control management software etc.

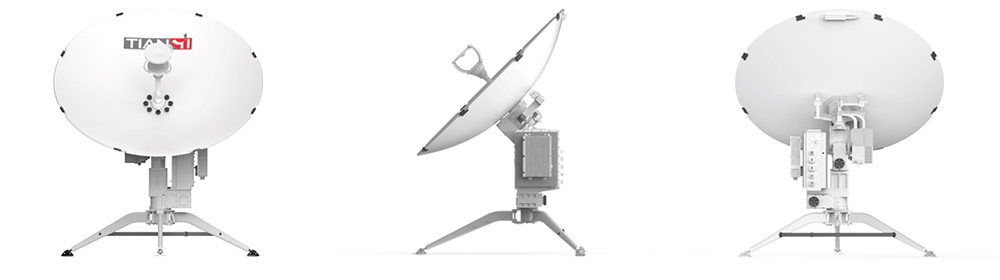

Product display
Technical date
Model No | AF1000ZN1-A | ||
Ka band | |||
Operational Frequency | Tx | 27.5～31.0 GHz | |
Rx | 17.7～21.2 GHz | ||
Gain (Mid Band) | Tx | 46.9+20lg(f/30) dBi | |
Rx | 43.8+20lg(f/20) dBi | ||
Polarization | Circular | ||
Axis Ratio (On Axis, Circular) | 1.5 dB | ||
Tx/Rx Isolation | 85 dB | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
VSWR | 1.5 | ||
Side Lobe | -14 dB（first side lobe） | ||
Feed Type | Ring focus | ||
Reflector Aperture | 1.0m | ||
Reflector Material | Carbon fiber | ||
Travel Range | Azimuth | ± 200° | |
Elevation | 10°~90° | ||
Polarization | ± 90° | ||
Travel Speed | Azimuth | 0.1° /S ～3° /S | |
Elevation | 0.1° /S ～3° /S | ||
Pol | 1° /S | ||
Auto acquisition time | ≤ 3 min | ||
Pointing accuracy | ≤0.3dB（R.M.S） | ||
Tracking mode | Beacon/DVB carrier | ||
System weight | ≤ 23 Kg (excluding BUC, packaging and accessories) | ||
