0.90m KU Band Flyaway Antenna

Ring focus parabolic antenna with carbon fiber reflector, ku band corrugated horn, OMT and filter, AZ, EL, POL, tripod support legs and anchor screws.


Various flyaway antennas with carbon fiber reflectors and different bands have light weigh, high gain and accuracy, low side lobe, fast installation, tracking and one button pointing to satellite within very short time.


System features

A.Easy acquisition without any training and tools.

B.Fast and high-quality transmission at anytime and anywhere.

C.Using at such industries as Broadcast & media, emergency & public safety, oil and gas etc.

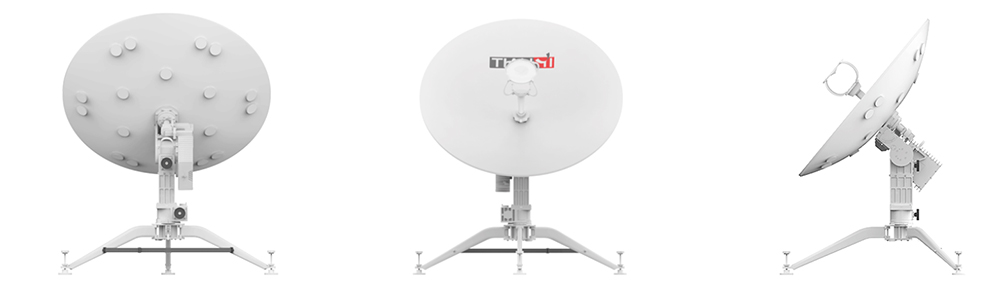

Product display



Technical data

Name

0.9m KU prime focus manual  flyaway antenna

Antenna feed

Prime focus

Type

MF-900Z-A

Equivalent aperture

0.9 m

POL mode

Linear

Frequency

Rx:10.70~12.75GHz

Gain

Rx:≥39.0+20lg(f/12.50)dBi

Tx:13.75~14.50GHz

Tx:≥40.0+20lg(f/14.25)dBi

Port   isolation

Rx-Tx:≥ 85 dB(LNB input  )

VSWR

Rx:≤ 1.5

Tx-Rx:≥40 dB(BUC output )

Tx:≤ 1.5

Cross   polarization isolation

 ≥ 30 dB(axle )

1st side lobe

≤ -14 dB

Motion range

AZ

360°

Power capacity

≤1000 W

EL

0° ~ 90°

RF interface

Rx:WR75

POL

± 90°

Tx:WR75

Operating temperature

-40°C~+60 °C

Operating wind velocity

≤11 m/s(Ballasting )

Storage temperature

-50°C~+70 °C

Survival wind velocity

≤18 m/s(Ballasting )

Humidity requirement

No more than  95%(20 °C)

Protection grade

 IP 65

System weight

≤11.5 Kg(excluding BUC.LNB.packaging and   accessories etc)

Application case

Tianyi’s products are used at such industries as broadcast & media, emergency& public security, oil and gas etc.
