Fly-Away
0.75M Offset Flyaway Antenna
A.Single offset reflector antenna with 4 segments. B.Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes. C.Easy acquisition without any training and tools. D.Fast and high-quality transmission at anytime and anywhere.
System composition
A. Single offset reflector antenna with 4 segments.
B. AZ pedestal, EL pedestal, AZ support and antenna feed system.
Highlight
A. Single offset reflector antenna with 4 segments.
B. Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes.
C. Easy acquisition without any training and tools.
D. Fast and high-quality transmission at anytime and anywhere.
E. Support Ku and Ka band as an option.
F. Using at such industries as Broadcast & media, emergency & public safety, oil and gas etc.

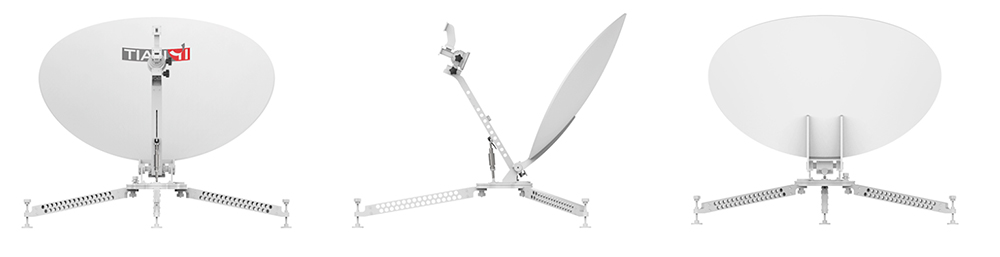

Product display
Technical date
Model No | MF750-A | |
Ku band | ||
Operational Frequency | Tx | 13.75～14.50 GHz |
Rx | 10.7～12.75 GHz | |
Gain (Mid Band) | Tx | 37.8+20lg(f/14.0) dBi |
Rx | 36.9+20lg(f/12.0) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 30 dB | |
Axis Ratio (Circular) | / | |
Tx/Rx Isolation | 85 dB | |
VSWR | 1.3 | |
Feed Interface | WR75 | |
Side Lobe | -14dB（first side lobe） | |
Feed Type | Single offset | |
Reflector aperture | 0.75m | |
Slew Range | Azimuth | ± 60° |
Elevation | 0°~90° | |
Polarization | ±90° | |
Weight | ≤ 8.8Kg（without BUC, LNB, packaging and accessories etc.） | |
