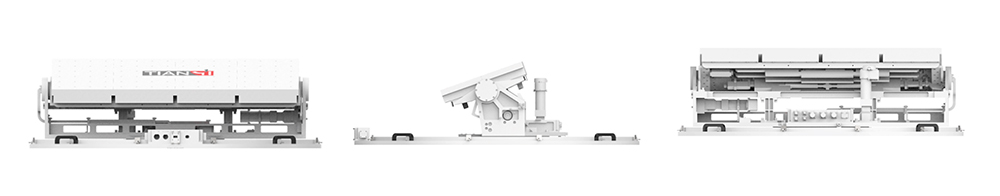

Type

SOMA-900P-A

Equivalent aperture

0.9m

POL mode

Linear

Frequency

Rx：12.25～12.75GHz

Gain

Rx：≥38.0 +20lg（f/12.50）dBi

Tx：14.00～14.50GHz

Tx：≥39.0+20lg（f/14.25）dBi

Port isolation

Tx-Rx：≥ 40 dB

VSWR

Rx：≤ 2.3

Rx-Tx：≥ 85 dB

Tx：≤ 3.2

Cross polarization isolation

≥ 30 dB（axial ）

1^st side lobe

AZ：≤ -14 dB

Dynamic satellite switching   time

≤ 8 s

EL：≤ -11 dB

Interface type

Rx：N-50K , Tx：WR75

Power capacity

100 W

Steady type

Two   axle

Radome insertion   loss

≤ 0.3 dB

Motion range

AZ

360° continuous

Revolution

AZ

≤ 60 °/s

Angular acceleration

AZ

≥ 200 °/s²

EL

0～90°

EL

≤ 60 °/s

EL

≥ 200 °/s²

POL

360° continuous

POL

≤ 40 °/s

Auto acquisition satellite   time

Initial acquisition satellite   time

≤ 3min

Tracking accuracy

≤ 0.5 dB（R.M.S）

Blockage recovery time  （Blockage 20min）

≤ 5 s

Pointing mode

Beacon

Controller parameter

19 inch 1U case

Positioning mode

GPS+BD

Operating   temperature

-40°C～+60 °C

Operating wind velocity

21 m/s

Storage temperature

-50°C～+70 °C

Survival wind velocity

35 m/s

Humidity   requirement

95%（20 °C）

Protection grade

IP65

Power

220 VAC ，50 Hz

System power consumption

300W（excluding BUC ）

Selection of BUC

Recommend Mitce series

≤ 40W

Selection of LNB

Norsat HS1057B

System weight

≤ 85 Kg（excluding BUC, packaging and accessories）
