0.9m KU Parabolic COTM

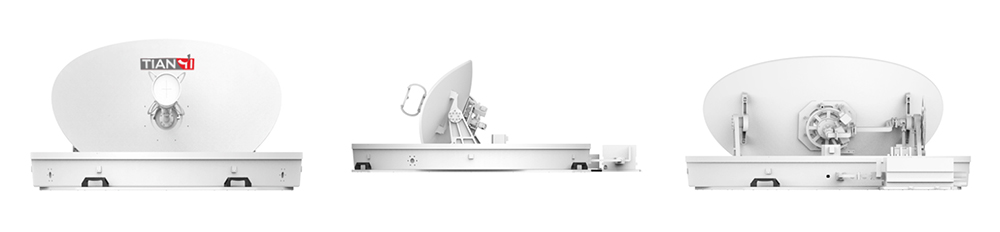

A.Prime focus parabolic antenna with carbon fiber ,corrugated horn, Rx-Tx duplexer and filter, AZ,EL,POL motor ,servo driver, inertial navigation system, GPS/BD（optional）, beacon receiver, AZ,EL .POL angle sensor, main control board. B.Fast initial pointing, auto tracking of polarization, high automation and water-resistance radome.
System features
High automation and water-resistance radome.
Application case
Tianyi’s products are used at such industries as broadcast & media, emergency& public security, oil and gas etc.
Product display
Technical data
Name | 0.9m ku parabolic COTM | Feed form | Prime focus | ||||||
Type | SOMA-900-A | Equivalent aperture | 0.9m | POL | Linear | ||||
Frequency | Rx：12.25～12.75 GHz | Gain | Rx：≥38.4+20lg（f/12.50）dBi | ||||||
Tx：14.00～14.50 GHz | Tx：≥39.5+20lg（f/14.25）dBi | ||||||||
Port isolation | Rx-Tx ：≥ 85 dB | VSWR | Rx：≤1.5 | ||||||
Tx-Rx： ≥ 40dB | Tx：≤1.5 | ||||||||
Across polarization isolation | ≥35dB（axial ） | 1st side lobe | AZ ：≤ -14 dB | ||||||
Interface form | Rx：N-50K； Tx：WR75 | Power capacity | 100 W | ||||||
Steady type | 2 axis | Radome insertion loss | ≤ 0.3dB | ||||||
Motion range | AZ | 360° continuous | Revolution | AZ | ≤ 60 °/s | Angular acceleration | AZ | ≥ 200 °/s2 | |
EL | 10°～90° | EL | ≤ 60 °/s | EL | ≥ 200 °/s2 | ||||
POL | ± 90° | POL | ≤ 40 °/s | ||||||
Auto acquisition time | Initial acquisition time | ≤ 3min | Tracking accuracy | ≤ 0.5dB（R.M.S） | |||||
Blockage recovery time （Blockage 20min） | ≤ 5 s | Pointing method | Automatic | ||||||
Controller type | 19inch 1U case | Positioning mode | GPS+BD | ||||||
Operating temperature | -40°C～+60°C | Operating wind velocity | 21 m/s | ||||||
Storage temperature | -50°C～+70 °C | Survival wind velocity | 35 m/s | ||||||
Humidity requirement | 95%（20 °C） | Protection grade | IP65 | ||||||
Power | 220V/AC，50Hz | System power consumption | ≤300 W（excluding BUC） | ||||||
Selection of BUC | Recommend to use MITEC.Wavestream series | Selection of LNB | Norsat HS1057B | ||||||
System weight | ≤ 75Kg（excluding BUC, LNB, case, packaging and accessories etc） | ||||||||
