On The Move Antenna
0.8m Mid Profile On The Move Antenna
A.Superior electrical performance. B.The antenna adopts carbon fiber material with light weight, high gain and low side lobe. C.Fast initial pointing. D.Auto tracking of polarization, the low frequency slip ring and high frequency joint are used to assure continuous rotation of azimuth of antenna.
Highlight
A.Superior electrical performance.
B.The antenna adopts carbon fiber material with light weight, high gain and low side lobe.
C.Fast initial pointing.

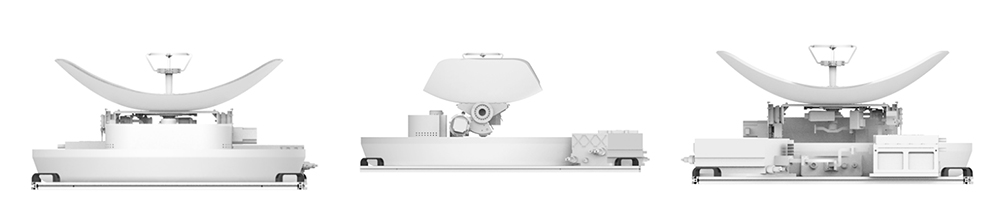

Product display
Technical date
Model No | COTM800-A | |||
Ku band | ||||
Operational Frequency | Tx | 13.75～14.50 GHz | ||
Rx | 10.7～12.75 GHz | |||
Gain (Mid Band) | Tx | 38.4+20lg(f/14.25) dBi | ||
Rx | 37.3+20lg(f/12.50) dBi | |||
Polarization | linear | |||
VSWR | Tx:1.5, Rx:1.5 | |||
CPI (On Axis, linear) | 35dB | |||
Tx/Rx Isolation | 85dB | |||
Power capability | 100W | |||
Feed Interface | Tx: WR75, Rx: N-50K | |||
Side Lobe | AZ: ≤ -14dB (first side lobe) | |||
Antenna Type | Low profile parabolic | |||
Equivalent aperture | 0.8m | |||
Material | Carbon fiber | |||
Travel Range | Azimuth | 360° continuous | ||
Elevation | 15°~90° | |||
Polarization | ± 90° | |||
Travel Speed | Azimuth | ≤ 60 °/s | Acceleration | ≥ 200 °/s2 |
Elevation | ≤ 60 °/s | ≥ 200 °/s2 | ||
Pol | ≤40 °/s | |||
Radome insertion loss | ≤ 0.3dB | |||
Steady type | Two axles | |||
Auto acquisition satellite time | Initial acquisition satellite time | ≤ 3min | ||
Blockage recovery time | ≤ 5 s（Blockage 20min） | |||
Tracking accuracy | ≤ 0.5 dB（R.M.S） | |||
Positioning mode | GPS+BD | |||
Operating Wind Loading | 21m/s | |||
Survival wind Loading | 35m/s | |||
System weight | ≤ 75Kg (excluding BUC, LNB, case, packaging and accessories etc) | |||
