Fly-Away
1.2m Offset Flyaway Antenna System
A.Single offset reflector antenna with 6 segments. B.Utilization rate of carbon fiber is up to 80%. C.Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes. D.Easy acquisition without any training and tools.
Highlight
A. Single offset reflector antenna with 6 segments.
B. Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes.
C. Utilization rate of carbon fiber is up to 80%.

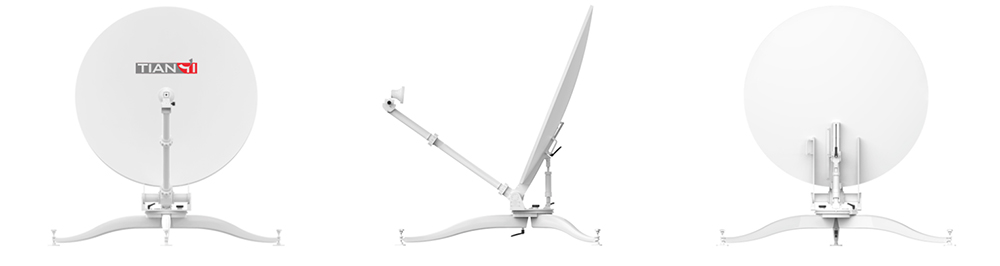

Product display
Technical date
Model No | MF-1200N1-A | ||
Ka band | |||
Operational Frequency | Tx | 27.50～31.00GHz | |
Rx | 17.70～21.20GHz | ||
Gain (Mid Band) | Tx | 48.5+20lg(f/30.00) dBi | |
Rx | 45.2+20lg(f/20.40) dBi | ||
Polarization | Circular | ||
Axis Ratio (Circular) | 2dB | ||
VSWR | 1.5 | ||
Tx/Rx Isolation | 85 dB | ||
Power capability | 400W | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
Side Lobe | -14dB（first side lobe） | ||
Feed Type | Single offset | ||
Reflector aperture | 1.2M | ||
Slew Range | Azimuth | 360° | |
Elevation | 0°~90° | ||
Polarization | / | ||
Weight | ≤ 25Kg（without BUC, LNB, packaging and accessories etc.） | ||
