1.2m KU Prime Focus Auto Flyaway Antenna
Ring focus parabolic antenna (with carbon fiber reflector),ku band corrugated horn, OMT and filter，AZ, EL, POL motor ，beacon receiver, angle sensor .GPS.DVB. WiFi module .ATPC control board etc.
System features
One button operation, motorized and manual control modes at various conditions, wide-range AC 220V for power supply and tailor-made power supply.

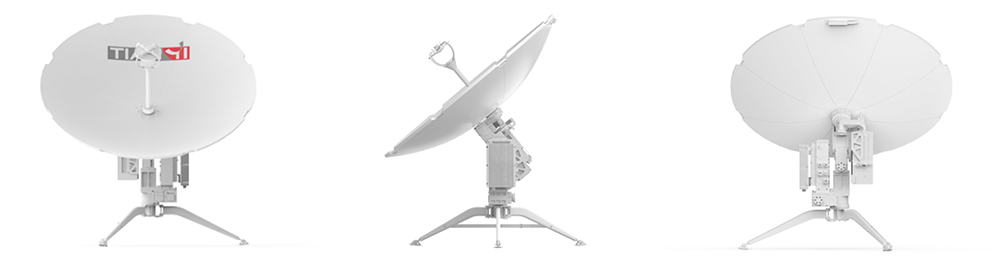

Product display
Technical data
Name | 1.2m ku prime focus auto flyaway antenna | Antenna feed | Prime focus | |||||
Type | FA-1200Z-D | Equivalent aperture | 1.2m | POL | Linear | |||
Frequency | Rx：10.95～12.75GHz | Gain | Rx：≥41.5+20lg(f/12.50)dBi | |||||
Tx：13.75～14.50GHz | Tx：≥42.8+20lg(f/14.25)dBi | |||||||
Rx-Tx isolation | Rx-Tx：≥ 85 dB（LNBinput ） | VSWR | Rx：≤ 1.5 | |||||
Tx-Rx ：≥ 40 dB（BUC input ） | Tx：≤ 1.5 | |||||||
Cross polarization isolation | ≥ 35dB（axle ） | 1st side lobe | ≤ -14dB | |||||
Interface | RF interface ：WR75 | Power capacity | ≤ 100 W | |||||
MF interface ：N-50K | Handheld type | Three-prevention handheld | ||||||
Motion range | AZ | ± 200° | Revolution | AZ | 0.1°～3 °/s | |||
EL | 10°～90° | EL | 0.1°～3 °/s | |||||
POL | ± 90° | POL | 0.1°～3°/s | |||||
