1.2m Ka Band Auto Flyaway Antenna
A.Full Ka band operation up to 3.5GHz bandwidth. B.High accuracy carbon fiber panel up to 0.3mm RMS. C.Aviable intergrate the mainly Ka tranceiver system. D.Support manual, auto and one button capture satellite within 3 minutes.
Highlight
A.Full Ka band operation up to 3.5GHz bandwidth.
B.High accuracy carbon fiber panel up to 0.3mm RMS.
C.Aviable intergrate the mainly Ka tranceiver system.
D.Support manual, auto and one button capture satellite within 3 minutes.
E.Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application.
F.Ring focus feed system assures high gain, low side lobe and perfect RF proformance.
G.Intergrate GPS system, position detection system, POL adjustment system ,servo drive system, auto protection system , high performance satellite beacon receiving system , and intelligent control management software etc.

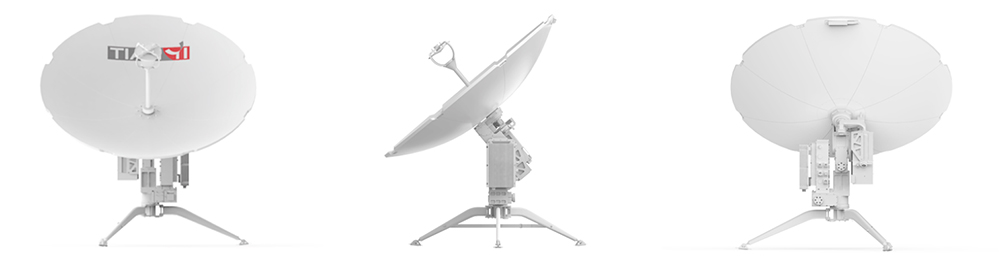

Product display
Technical date
Model No | AF1200ZN1-A | ||
Ka band | |||
Operational Frequency | Tx | 27.5～31.0 GHz | |
Rx | 17.7～21.2 GHz | ||
Gain (Mid Band) | Tx | 48.5+20lg(f/30) dBi | |
Rx | 45.4+20lg(f/20) dBi | ||
Polarization | Circular | ||
Axis Ratio (On Axis, Circular) | 1.5 dB | ||
Tx/Rx Isolation | 85 dB | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
VSWR | 1.5 | ||
Side Lobe | -14 dB（first side lobe） | ||
Feed Type | Ring focus | ||
Reflector Aperture | 1.2m | ||
Reflector Material | Carbon fiber | ||
