Fly-Away
1.2m Auto Deploy Flyaway Antenna
A.Support manual, auto and one button capture satellite within 3 minutes. B.Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application. C.Ring focus feed system assures high gain, low side lobe and perfect RF proformance.
System description
1.2m Auto Deploy Flyaway Antenna is Tianyisatcom five star product in the world .
It is Ring focus feed system assures high gain, low side lobe with light weight and high strength.
It is include ring focus feed(with carbon fiber reflector ), ku band corrugated horn, OMT filter, ACU and carbon fiber mounting ect.

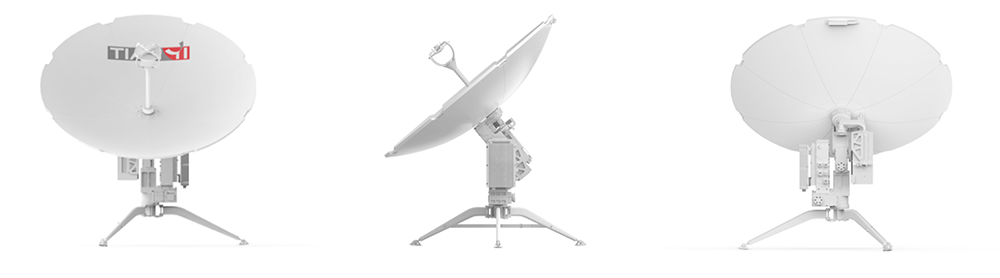

Product Diaplay
Technical date
Model No | AF0120ZN0-A | |
Ku band | ||
Operational Frequency | Tx | 13.75～14.50 GHz |
Rx | 10.7～12.75 GHz | |
Gain (Mid Band) | Tx | 42.8+20lg(f/14.25) dBi |
Rx | 41.5+20lg(f/12.5) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
Tx/Rx Isolation | 85 dB | |
Feed Interface | WR-75 | |
Side Lobe | -14 dB（first side lobe） | |
Feed Type | Ring focus | |
Reflector Aperture | 1.2m | |
Reflector Material | Carbon fiber | |
Travel Range | Azimuth | ± 200° |
Elevation | 10°~90° | |
Polarization | ± 90° | |
Travel Speed | Azimuth | 0.1° /S ～3° /S |
Elevation | 0.1° /S ～3° /S | |
Pol | 1° /S | |
Auto acquisition time | ≤ 3 min | |
Pointing accuracy | ≤0.3dB（R.M.S） | |
Tracking mode | Beacon/DVB carrier | |
System weight | ≤ 24.6Kg (excluding BUC, packaging and accessories) | |
