Fly-Away
1.8m Auto Deploy Flyaway Antenna
A.Support manual, auto and one button capture satellite within 3 minutes. B.Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application. C.Gregory dual offset assures high gain, low side lobe and perfect RF performance.
Highlight
A. Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application.
B. Gregory dual offset assures high gain, low side lobe and perfect RF performance.

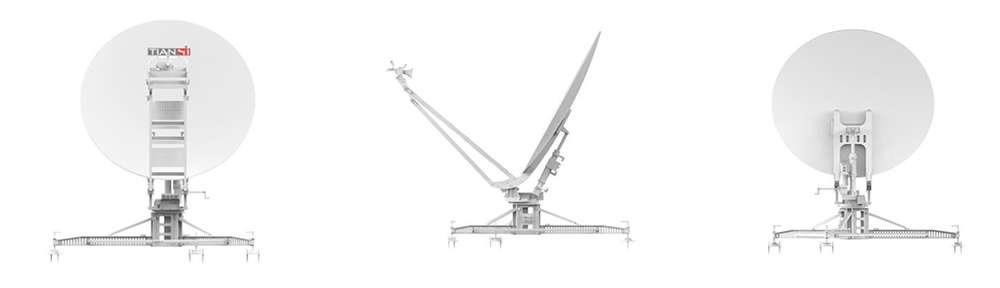

Product display
Technical date
Model No | AF1800SN2-A | |
C band | ||
Operational Frequency | Tx | 3.40～4.20GHz |
Rx | 5.85～6.725GHz | |
Gain (Mid Band) | Tx | 38.8+20lg(f/6.0) dBi |
Rx | 34.8+20lg(f/3.8) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
Tx/Rx Isolation | 85 dB | |
RF Interface | Tx: CPR137, RX: WR229 | |
MF interface | N-50K | |
Side Lobe | -14 dB（first side lobe） | |
Feed Type | Single offset | |
Reflector Aperture | 1.8m | |
Reflector Material | Carbon fiber | |
