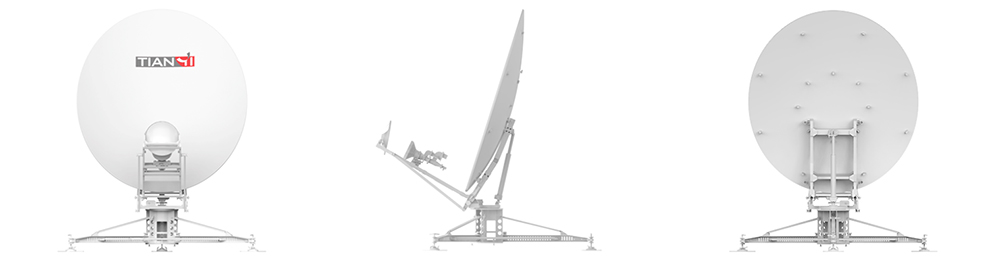

2.4M Ka Band Offset Flyaway
A.Full Ka band operation up to 3.5GHz bandwidth. B.High accuracy carbon fiber panel up to 0.3mm RMS. C.Aviable intergrate the mainly Ka tranceiver system. D.Dual offset Gregory antenna with 9 segments.
Highlight
A. Full Ka band operation up to 3.5GHz bandwidth.
B. High accuracy carbon fiber panel up to 0.3mm RMS.
C. Aviable intergrate the mainly Ka tranceiver system.
Product display
Technical date
Model No | MF2400DN1-A | ||
Ka band | |||
Operational Frequency | Tx | 27.5～31.0 GHz | |
Rx | 17.7～21.2 GHz | ||
Gain (Mid Band) | Tx | 54.5+20lg(f/30) dBi | |
Rx | 51.4+20lg(f/20) dBi | ||
Polarization | Circular | ||
Axis Ratio (On Axis, circular) | 1.5dB | ||
VSWR | 1.3 | ||
Tx/Rx Isolation | 85 dB | ||
Power capability | 100W | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
Side Lobe | -14dB（first side lobe） | ||
Feed Type | Dual offset Gregory | ||
Reflector aperture | 2.4M | ||
