2.4M C Band Offset Flyaway
A.Single offset reflector antenna with 6 segments. B.Carbon fiber reflector with light weight, high strength and two persons can finish the installation within 10 minutes. C.Easy acquisition without any training and tools.
Highlight
A. Aluminum tripod support legs.
B. Support C, X, Ku and Ka band as an option.
C. Customer bands are available.
D. Using at such industries as Broadcast & media, emergency & public safety, oil and gas etc.

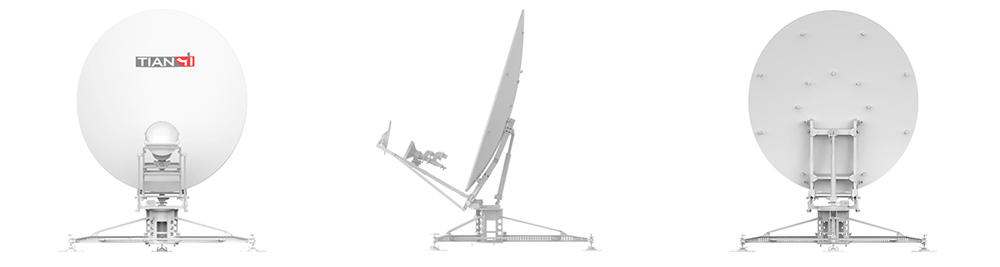

Product display
Technical date
Model No | MF2400DN1-A | ||
C band | |||
Operational Frequency | Tx | 5.85～6.725 GHz | |
Rx | 3.4～4.2 GHz | ||
Gain (Mid Band) | Tx | 41.7+20lg(f/6.25) dBi | |
Rx | 37.4+20lg(f/3.8) dBi | ||
Polarization | linear | ||
Axis Ratio (On Axis, circular) | 35 dB | ||
VSWR | 1.5 | ||
Tx/Rx Isolation | 85 dB | ||
Power capability | 1000W | ||
Feed Interface | Tx | WR137 | |
Rx | WR229 | ||
Side Lobe | -14dB（first side lobe） | ||
Feed Type | Dual offset Gregory | ||
Reflector aperture | 2.4M | ||
