Fly-Away
1.8m Offset Flyaway Antenna System
A.Single offset reflector antenna with 6 segments. B.Carbon fiber reflector with light weight, high strength and two persons can finish the installation within 10 minutes. C.Easy acquisition without any training and tools. D.Fast and high-quality transmission at anytime and anywhere.
Highlight
A. Easy acquisition without any training and tools.
B. Fast and high-quality transmission at anytime and anywhere.
C. Single offset reflector antenna with 6 segments.
D. Carbon fiber reflector with light weight, high strength and two persons can finish the installation within 10 minutes.

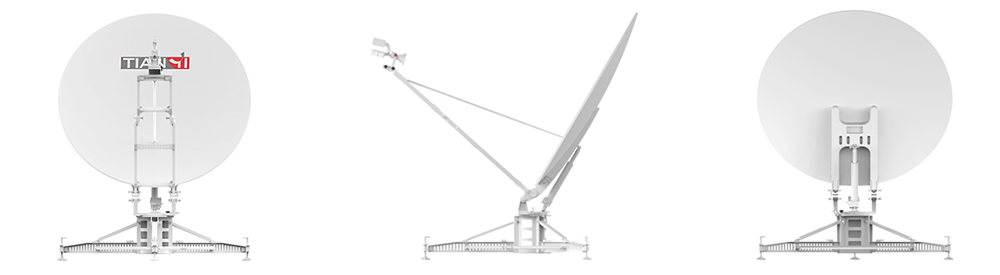

Product display
Technical date
Model No | MF1800N1-A | ||
Ku band | |||
Operational Frequency | Tx | 27.5～30.0 GHz | |
Rx | 17.7～20.2 GHz | ||
Gain (Mid Band) | Tx | 51.7+20lg(f/29) dBi | |
Rx | 48.5+20lg(f/19) dBi | ||
Polarization | Circular | ||
Axis Ratio (On Axis, circular) | 2.0dB | ||
VSWR | 1.3 | ||
Tx/Rx Isolation | 85 dB | ||
Power capability | 100W | ||
Feed Interface | Tx | WR28 | |
Rx | WR42 | ||
Side Lobe | -14dB（first side lobe） | ||
Feed Type | Single offset | ||
Reflector aperture | 1.8M | ||
Slew Range | Azimuth | 360° | |
Elevation | 0°~85° | ||
Polarization | / | ||
Weight | ≤73Kg（without BUC, LNB, packaging and accessories etc.） | ||
