1.5m KU Single Reflector Drive Away Antenna
A.Single reflector, feed, AZ and EL pedestal, ACU, ADU. digital compass, GPS. high sensitive beacon receiver. System features B. Convenient installation on the top of various vehicles. C．Excellent reliability, maintainability and environmental suitability at different harsh road conditions.
System features
High Automation level, high accuracy GPS and strong anti-interference of electronic compass. Fast and automatic pointing to satellite with less than 3min (RMS) and without blockage.

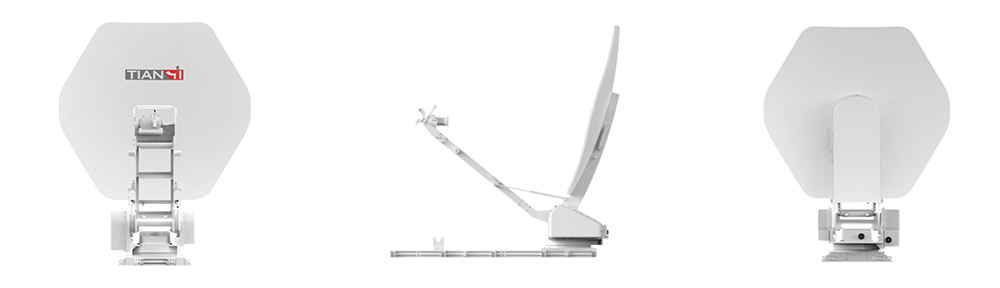

Product display
Technical data
Name | 1.5m ku band single reflector drive away | Feed | Offset | ||||
Type | DA-1500-A | Equivalent aperture | 1.5m | Pol | Linear | ||
Frequency | Rx：12.25～12.75GHz | Gain | Rx：≥43.4+20lg(f/12.50)dBi | ||||
Tx：14.00～14.50GHz | Tx：≥44.5+20lg(f/14.25)dBi | ||||||
Port isolation | Rx-Tx：≥ 85 dB（LNB input） | VSWR | Rx：≤ 1.3 | ||||
Tx-Rx ≥ 40 dB（BUC output） | Tx：≤ 1.3 | ||||||
Cross polarization isolation | ≥ 35 dB（axle） | 1st side lobe | Level ：≤ -14 dB | ||||
Interface | Dual WR75 | Power capacity | ≤ 100 W | ||||
Motion range | AZ | ± 200° | Revolution | AZ | 0.1～3 °/s | ||
EL | 10°～85° | EL | 0.1～3 °/s | ||||
POL | ± 90° | POL | 0.1～6 °/s | ||||
Auto acquisition time | ≤ 3min | Pointing method | Beacon | ||||
Pointing accuracy | 0.3dB（R.M.S） | Positioning mode | GPS/ Manual input | ||||
Type of controller | Standard 19 inch 1U case | ||||||
Operation temperature | -40°C～+55 °C | Operating wind velocity | ≤20 m/s | ||||
Storage temperature | -50°C～+70 °C | Survival wind velocity | ≤25 m/s | ||||
Humidity requirement | 95%（20 °C） | Protection grade | IP65 | ||||
