1.2mKU Single Reflector Drive Away Antenna
A.Single reflector, feed, AZ and EL pedestal, ACU, ADU. digital compass, GPS. high sensitive beacon receiver. B.Convenient installation on the top of various vehicles. C.Excellent reliability, maintainability and environmental suitability at different harsh road conditions.
System features
A. Convenient installation on the top of various vehicles.
B. Multiple protection functions as automatic warning, mechanical limit and software limit for safer operation.

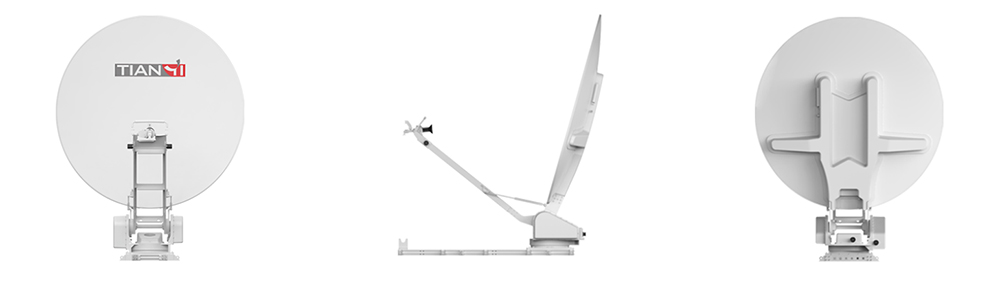

Product display
Technical data
Name | 1.2m ku band single reflector drive away | Feed | Offset | ||||
Type | DA-1200-C3 | Equivalent aperture | 1.2m | Pol | Linear | ||
Frequency | Rx：10.95～12.75 GHz | Gain | Rx：≥41.5+20 lg(f/12.50)dBi | ||||
Tx：13.75～14.50 GHz | Tx：≥42.6+20 lg(f/14.25)dBi | ||||||
Port isolation | Rx-Tx：≥ 85 dB（LNB input） | VSWR | Rx：≤ 1.3 | ||||
Tx-Rx ：≥ 40 dB（BUC output） | Tx：≤ 1.3 | ||||||
Cross polarization isolation | ≥ 35 dB（axle） | 1st side lobe | Level：≤ -14 dB | ||||
Interface | Dual WR75 | Power capacity | ≤ 100 W | ||||
Motion range | AZ | ± 200° | Revolution | AZ | 0.1～6 °/s | ||
EL | 10°～90° | EL | 0.1～6 °/s | ||||
POL | ± 90° | POL | 0.1～6 °/s | ||||
Auto acquisition time | ≤ 3min | Pointing method | Beacon | ||||
0.3dB（R.M.S） | Positioning mode | GPS/Beidou | |||||
Type of controller | Standard 19 inch 1U case | ||||||
