2.4m KU Band Drive Away Antenna
A.Support manual, auto and one button functions. B.Gregory dual offset assures high gain, low side lobe and perfect RF proformance. C.Carbon fiber reflector with light weight, high strength and high accuracy R.M.S<0.3mm. D.Convenient installation on the top of vehicle.
Highlight
A.2.4m KU Band Drive Away Antenna support DVB-S, DVB-S2, beacon and modem in satellite locking within 3 minutes.
B.High accuracy GPS and strong anti-interference of electronic compass assure environmental suitability of pointing function and accuracy of program pointing.
C.Multiple protection functions as automatic warning, mechanical limit and software limit for safer operation of the antenna.

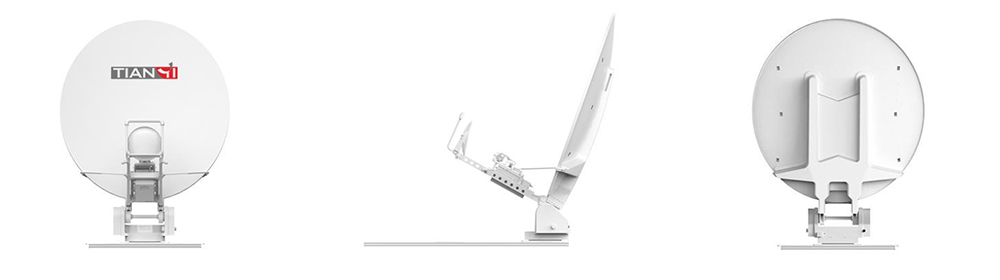

Product Display
Technical date
Model No | DA2400D-A | |
Ku band | ||
Operational Frequency | Tx | 13.75～14.50 GHz |
Rx | 10.7～12.75 GHz | |
Gain (Mid Band) | Tx | 48.8+20lg(f/14.25) dBi |
Rx | 47.7+20lg(f/12.50) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
VSWR | 1.3 | |
Tx/Rx Isolation | 85 dB | |
Power capability | 400W | |
Feed Interface | WR75 | |
Side Lobe | -14 dB（first side lobe） | |
Feed Type | Dual offset Gregory | |
Reflector Aperture | 2.4m | |
Reflector Material | Carbon fiber | |
