13m Earth Station Antenna System
Tianyi Satcom‘s 13-meter antenna has perfect performance for transmit/ receive and receive only applications for S through Ka-band frequencies with its own technology. The reflector design of the antenna contains high precision-formed panels, truss radials and hub assembly.
System description
Tianyi Satcom 13meter Carbon fiber earth station antenna has perfect performance for transmit/ receive and receive only applications for S through Q-band frequencies with its own technology. The whole Carbon fiber reflector design of the antenna contains high precision-formed panels, truss radials and hub assembly. The feature of the antenna is to adopt Cassegrain feed and sub-reflector design, with such results as high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference.
Highlight
Meet CCIR580-5 and INTELSAT requirements.
Dual modify Cassegrain antenna with high accuracy
Whole Carbon fiber panels and Structure with light and perfect Environmental characteristics.
Main reflector surface accuracy up to 0.3mm R.M.S.
The reflector, back structure and ring beam are enclosed carbon hollow thin wall structure, with such features as light weight and easy adjustment of accuracy.
Support Ka band and higher band.
High RF performance with high gain and low noise temperature.
Hot dip galvanized structure for different environment.
Customer feed system is available.
Full motion pedestal with Dual-motor for anti-backlash.
Monopulse tracking with TE21 mode tracker.
Long life time up to 15 years.
Optional
Dehydrate sub-system with automatic control
Waveguide system from feed interface to the antenna pedestal end
Four Tx/Rx port in linear or circular polarized feeds
Motorized POL for different band
ODU Support Kits for outdoor RF system

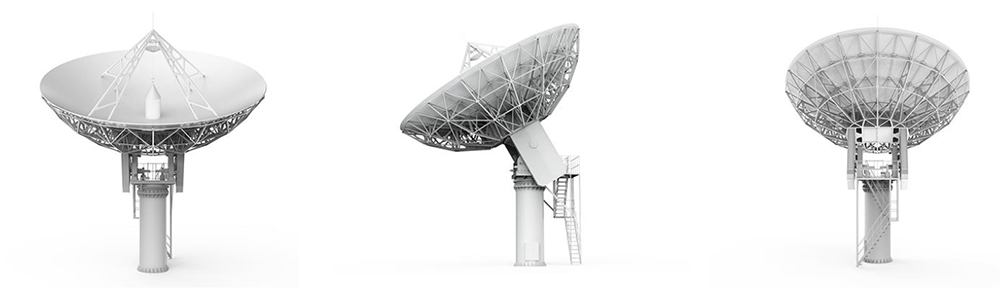

Product display

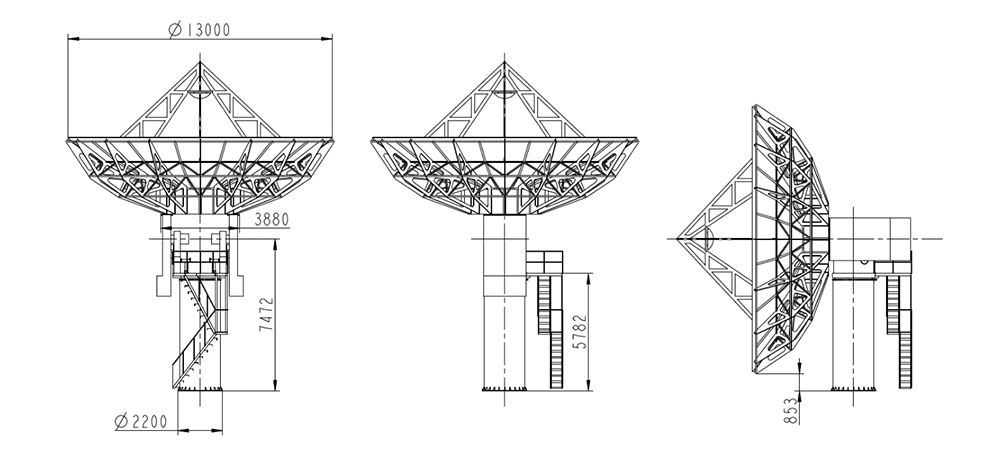

Technical Data
RF specification | ||||
Model No. | AES13000N1-A | |||
Operational frequency, GHz | Ka band | |||
Tx | Rx | |||
27.5～30.0GHz | 17.7～20.2GHz | |||
Tracking | TE21 17.7～20.2GHz | |||
RHCP and LHCP | ||||
Typical gain, dBi | ≥69.4+20lg（f/29.5） | ≥66.0+20lg（f/20.0） | ||
Polarization | Circular | Circular | ||
LHCP/RCHP | LHCP/RCHP | |||
Axis Ratio (on Axis), dB | 0.75dB | 0.75dB | ||
VSWR | 1.35 | 1.35 | ||
Antenna Noise Temperature (4 Port Feed) 20° Elevation | / | 140K | ||
Feed Insertion Loss, dB | 0.6 | 0.9 | ||
G/T（EL=20°）dB/K (no wind, clear) | / | ≥42.3+20Lg(f/20.2) (120K LNA) | ||
Total Power Capability, W | 500W | / | ||
Feed Interface | WR28 | WR42 | ||
Tracking Interface | N-F | |||
Difference null depth, dB | ≤35 | |||
Isolation, Tx/Rx, dB Rx/Tx, dB Tx/Tx, dB Rx/Rx, dB Tx/Tracking,dB | 85 85 20 20 85 | |||
Sidelobes | First sidelobe≤14dB Meet CCIR 580-5 | |||
Mechanical Specification | ||||
Antenna Diameter | 13m | |||
Antenna Type | Cassegrain | |||
Main Reflector Surface Accuracy | ≤0.3mm（R.M.S） | |||
Sub-Reflector Surface Accuracy | ≤0.15mm（R.M.S） | |||
Angle resolution： | 0.0001° (R.M.S) | |||
Monopulse tracking accuracy | 0.004° (windless condition) 0.008°(wind speed 20m/s-27m/s) | |||
Mount type | Turn table pedestal | |||
Drive Mode | AZ: Dual Motorized for anti-backlash | |||
EL: Dual Motorized for anti-backlash | ||||
Antenna Travel Range | Azimuth Elevation | ±175° (0°~90°)±2° | ||
Travel Speed | Azimuth Elevation | 0.004°/S-0.3°/S 0.004°/S-0.3°/S | ||
Environmental Specification | ||||
Operational Wind | 79km/h gusting to 97km/h | |||
Survival Wind | 240km/h (at zenith) | |||
Temperature | Outdoor -40°~+60° | |||
Indoor 0°~+45° | ||||
Relative Humidity | Outdoor 100% | |||
Indoor 10%~85% | ||||
Solar Radiation | 1135Kcal/h/m² | |||
Seismic (Survival) | 0.3g(H), 0.15g(V) | |||
Ice Loading | 13mm Operational; 25mm Survival | |||
Power supply | 200V ±10% 50Hz Single phase | |||
380V ±10% 50Hz Three phase | ||||
Lifetime | 15years | |||
